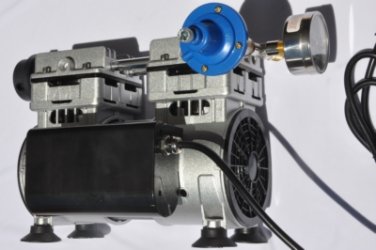

Controlled OIL-LESS VACUUM PUMP: Twin Piston 3/4 HP 5.5 CFM Good for Milker Machine Pulsator Hookup. This new improvement include a built-in electric switch at the pump. Come with a vacuum gauge and regulator kit for vacuum lavel control, great addition for milking machine hookup. $ave the oil, no oil-mist problem,
Demo by a user at a Wisconsin goat show: easy setup and carry any where:
FEATURES:
OIL-free twin piston pump model WVP5 with a builtin-electric switch;
Designed and manufactured with the highest quality in materials and workmanship;
Quiet run at wide temperature ranges, from subzero to 110 degree F, OK to start in cold.
Free Flow Rate: 5.5 CFM;
Push and pull/compressing and vacuum capable.
Max Vacuum: 25 inch Hg;
Thermal protected 3/4 HP motor;
Power Supply:120 VAC, 60 Hz; 5 feet cord with UL plug;
Insulation Class B;
Capacitor: 80 uF, cased in/protected;
Come with Control hardware kit for system pressure control and regulation: vacuum gauge and regulator with hardware.
Come with 4 rubber suction feet to reduce/absorb vibration and noise;
Physical Dimensions:
Size: 11 X 6 X 9 inch;
Shipping Weight: 28 lb.
Intake Port: 1/4 female NPT, come with adapter to 1/2 Barb.
Come with a mini muffler for quieter operation;
One year warranty;
Packing List:
Pump, model WVP5b, one unit
Intake Port adapter: 1/4 MNPT X 1/4 MNPT, one unit
Regulation Hardware Kit: 1 unit, come assembled with these parts:
Vacuum Gauge, 1 unit
Vacuum regulator, 1 unit
Brass Cross adapter, 1/4 MNPT X (3) 1/4 FNPT, 1 unit
Brass adaptera, 1/4 MNPT X 1/2 Barb, 2 units
Short 1/2 ID PVC hose, 2 inch, 1 unit
User Manual: 1 copy
